Understanding the Characteristics of Vacuum Casting
Vacuum casting stands, urethane casting or polyurethane casting as a pivotal process in the world of rapid prototyping and manufacturing, bridging the gap between initial concept and mass production with remarkable efficiency. This technique, central to the manufacturing process, offers a versatile solution for creating high-quality parts and prototypes.
At its core, vacuum casting is a method used to replicate parts in a cost-effective manner. The process begins with a master model, typically created using 3D printing or CNC machining. From this, a silicone mold is produced, into which materials like polyurethane resin are cast under a vacuum. This method ensures precision and detail, making it ideal for a wide range of applications, from medical devices to automotive components.
The significance of vacuum casting in today’s manufacturing landscape cannot be overstated. It stands not only as a testament to the evolution of rapid prototyping techniques but also as a key player in the development and testing phases of product design. Its ability to produce small batches of high-quality parts quickly and economically makes it a go-to choice for engineers and designers alike.
In the following sections, we will delve deeper into the defining characteristics of vacuum casting, exploring its materials, advantages, applications, and the future prospects of this indispensable manufacturing process.
What is Vacuum Casting?
Vacuum casting is a specialized manufacturing process predominantly used in the production of high-fidelity prototypes and end-use parts. Renowned for its precision, versatility, and speed, it is a favored choice across various industries.

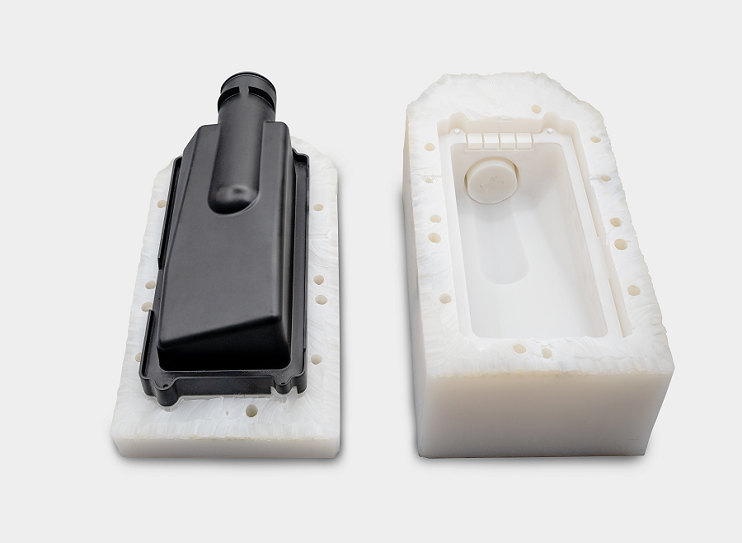

The process begins with the creation of a master model, typically crafted using techniques like 3D printing or CNC machining. This model is then encased in a silicone mold, meticulously capturing every detail. The unique aspect of vacuum casting is the next step: the introduction of a vacuum. Once the mold is prepared, a two-component resin, often polyurethane, is poured into the mold. The vacuum environment, created within a specialized vacuum chamber, ensures that the resin fills every intricacy of the mold without forming air bubbles, which are a common issue in standard casting methods.
An integral component of the vacuum casting process is the vacuum casting machine. This equipment meticulously manages the introduction and maintenance of the vacuum environment, ensuring consistent quality in the casting process. The precision offered by these machines contributes significantly to the high accuracy and quality of the final product.
Compared to other manufacturing techniques such as injection molding or 3D printing, vacuum casting has distinct advantages. While injection molding is optimal for large-scale production, vacuum casting is better suited for small to medium batch production, where the cost and time required to create injection molding tools are not justified. In contrast to 3D printing, which might leave visible layer lines, vacuum casting yields parts with superior surface finishes and a fidelity to the original design that is often unmatched.
The flexibility in the material used, facilitated by the silicone mold, allows for a wide range of options in both material choice and coloration. This versatility enables the production of parts that closely mimic those made from injection molding, making vacuum casting an ideal method for functional prototypes, marketing samples, and end-use parts that require specific aesthetic and tactile qualities.
Key Characteristics of Vacuum Casting A. Material Versatility
Vacuum casting is distinguished by several key characteristics that make it an invaluable process in various manufacturing and prototyping scenarios. Understanding these characteristics helps in appreciating why vacuum casting is often the preferred choice for many applications.
A. Material Versatility
| Material Type | Benefits |
| Polyurethane Resins | Mimic properties of plastics; available in different hardness levels |
| Clear Resins | Simulate glass or transparent plastics; useful for lenses and lighting cases |
| Flexible Resins | Emulate rubber-like properties; ideal for gaskets or seals |
| High-Temperature Resins | Suitable for parts that require thermal resistance |
Vacuum casting is primarily known for its ability to use a variety of materials, especially various types of vacuum casting resins. Each resin type offers specific properties that can be chosen based on the desired characteristics of the final product. For instance, polyurethanes are available in a range of hardness levels, adaptable for different applications from rigid housings to flexible hinges. This range of vacuum casting materials allows for the production of both plastic and rubber components, providing versatility in the production process.
B. High-Quality Surface Finish
One of the standout features of vacuum casting is its ability to achieve high-quality surface finishes. This is attributed to the nature of silicone molds, which replicate the surface texture of the master model with high fidelity. The vacuum ensures a bubble-free casting, resulting in smooth, clean surfaces that often require little to no post-processing. This level of finish is particularly advantageous when compared to other methods like 3D printing, where layer lines might be visible, or injection molding, which might require extensive post-processing for similar results.
C. Precision and Detail
Vacuum casting excels in reproducing intricate details and complex geometries, thanks to the precision of the silicone molds. These molds capture every nuance of the master model, allowing for the reproduction of features with high accuracy. This makes vacuum casting ideal for complex parts such as connectors, enclosures with fine details, or components with embossed text.
D. Speed and Efficiency
In terms of time efficiency, vacuum casting stands out, particularly in scenarios requiring rapid turnaround. The process is much quicker than building injection molding tools, making it ideal for short-run production and prototyping. This speed does not compromise the quality of the parts, making it a cost-effective solution for scenarios where quick delivery of high-quality prototypes or parts is critical.
Applications of Vacuum Casting
Vacuum casting finds its applications in a wide array of industries, each leveraging its unique capabilities for different purposes. Here are some notable examples:
- Automotive Industry: Manufacturers use vacuum casting for creating detailed parts such as dashboard components, lighting assemblies, and prototypes of new designs. It allows designers to test form, fit, and function before moving to mass production.
- Medical Equipment: In the medical field, vacuum casting is crucial for prototyping complex parts of medical devices. This includes components for imaging equipment, surgical tools, and patient-specific models for surgical planning.
- Consumer Products: For consumer goods, vacuum casting is often used to create high-quality prototypes of household appliances, electronics, and wearables. It enables designers to evaluate the aesthetics and ergonomics of products before large-scale manufacturing.
These applications highlight the versatility of vacuum casting, making it an invaluable tool in product development and prototype testing across various sectors.
Advantages of Vacuum Casting
The advantages of vacuum casting are numerous, contributing to its popularity in rapid prototyping and small-batch production:
- Cost-Effectiveness: Vacuum casting is significantly more economical than other manufacturing processes like injection molding for small to medium-sized production runs. The initial setup costs are lower, and the process allows for quick and affordable modifications.
- High-Quality Results: The process yields parts with excellent surface finishes, fine details, and high dimensional accuracy. This is particularly important for prototypes that need to closely resemble the final product.
- Material Versatility: Vacuum casting offers the flexibility to use a wide range of materials, including various types of resins that can mimic the properties of different plastics, rubbers, and even metals. This versatility is essential for testing different material properties in prototypes.
- Speed: The turnaround time for vacuum casting is relatively short, making it ideal for rapid prototyping. This quick production cycle allows companies to accelerate their product development and time-to-market.
- Customization and Complexity: Vacuum casting can handle complex shapes and intricate details which might be challenging or impossible to achieve with other manufacturing methods. It also allows for a high degree of customization in terms of colors and finishes.
The combination of cost-effectiveness, quality, material versatility, speed, and the ability to produce complex, customized parts makes vacuum casting a highly attractive option for a range of projects, particularly in the realms of prototyping and small-scale production.
Limitations and Considerations
While vacuum casting offers numerous advantages, it is important to be aware of its limitations to make informed decisions about its use:
Material Limitations:
- Durability: Parts made using vacuum casting might not be as durable as those produced by methods like injection molding, especially under high-stress conditions.
- Material Range: Despite its versatility, vacuum casting is limited to materials that can be cast, primarily various resins. Metals and certain high-performance plastics are not compatible with this process.
Production Scale:
- Batch Size: Vacuum casting is best suited for small to medium batch sizes. For large-scale production, other methods like injection molding might be more cost-effective.
Design Considerations:
- Wall Thickness: Parts with very thin walls can be challenging to produce using vacuum casting due to the risk of warping or incomplete filling.
Guidance for Choosing Vacuum Casting:
- Prototype and Small Batches: Ideal for high-quality prototypes or small batch production where detail and surface finish are crucial.
- Complex Geometries: Suitable for parts with complex shapes or intricate details that are difficult to achieve with other methods.
- Material Testing: Beneficial for testing different material properties in a prototype.
When to Opt for Alternative Methods:
- Large Volume Production: For high-volume manufacturing, processes like injection molding are more cost-effective.
- High-Stress Applications: If the part is subject to high mechanical stress, stronger materials and production methods may be required
The Future of Vacuum Casting
Vacuum casting is poised to evolve with the advancing landscape of manufacturing technology:
Integration with Emerging Technologies:
- Digital Manufacturing: The integration of vacuum casting with digital manufacturing tools such as advanced 3D printing can streamline the prototyping process further, allowing for even more rapid product development cycles.
- Automation: Enhancements in automation could make the vacuum casting process even more efficient, reducing labor costs and increasing consistency.
Material Science Advancements:
- New Resins: The development of new casting resins with enhanced properties like higher temperature resistance or improved mechanical strength will expand the applicability of vacuum casting.
- Sustainability: A focus on eco-friendly materials and processes is likely to influence future developments in vacuum casting materials.
Market Trends:
- Customization Demand: As the market increasingly demands customization, vacuum casting is well-positioned to meet these needs due to its flexibility and adaptability.
- Rapid Prototyping: The growing trend of rapid prototyping in industries like aerospace, automotive, and medical devices will continue to drive advancements in vacuum casting technology.
Speculations on Future Developments:
- AI and ML Integration: The potential integration of AI and machine learning could optimize the vacuum casting process, predicting the best material choices and process parameters for specific applications.
- Hybrid Manufacturing Methods: Future advancements may see a blend of vacuum casting with other manufacturing techniques, creating hybrid processes that leverage the strengths of each method.
Conclusion
Vacuum casting has firmly established itself as a cornerstone in the world of modern manufacturing and prototyping. This technique, characterized by its versatility, quality, and efficiency, serves a pivotal role in bridging the gap between concept and production.
We have explored the distinctive features of vacuum casting, including its material versatility, which allows the use of a variety of resins to closely emulate the properties of more traditional manufacturing materials. The process is particularly noted for delivering high-quality surface finishes and precision in detail, enabling the creation of intricate parts with a high degree of accuracy. These attributes, combined with the speed and efficiency of the process, make vacuum casting an ideal choice for rapid prototyping and small to medium-sized production runs.
Despite its many advantages, it’s important to recognize the limitations of vacuum casting, particularly regarding material durability and batch size. These factors are crucial when deciding whether vacuum casting is the most suitable method for a specific project. It excels in prototype development and scenarios where high-quality, detailed, and custom parts are required quickly, but may not be the best fit for large-scale production or parts subject to high mechanical stress.
Looking forward, the future of vacuum casting appears bright, with potential advancements in material science and technology integration expected to expand its capabilities further. The integration with digital manufacturing tools, automation, and perhaps even AI and machine learning, could revolutionize the vacuum casting process, making it even more efficient and adaptable.
In conclusion, vacuum casting remains a vital prototyping technique in the manufacturing process, valued for its ability to rapidly transform ideas into tangible, high-quality products. Its role in facilitating innovation and design in various industries is undeniable, and it will continue to be an indispensable tool in the manufacturing landscape for years to come.
