Injection Molding Tips – Part 3

November 2, 2018

Injection molding is not just for high-volume production. It can also be a great speed to market tool via rapid injection mold tool building for low-volume production. Many injection molding tools can take several weeks or longer to complete depending on the size and complexity of the tool. Rapid injection molding tools can deliver you a tool in the fraction of the time with a significant cost reduction with the trade off being a mold that has a reduced life.

The constant is, designing for both full production a low-volume tools follow the same rules. Here is another quick design tip for you, check it out.

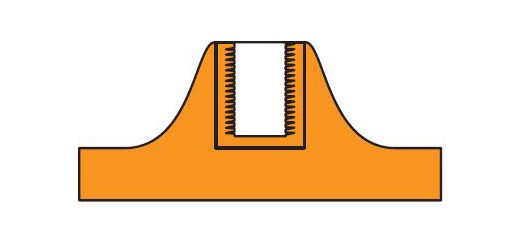

Threads – thread inserts can be over molded into the part.

Follow this design tip and other design tips coming up to achieve a part design that is well suited for injection mold manufacturing. Below is some further injection molding guidance which may help you with designing a highly successful part for injection molding manufacturing.

HLH Machine Sizes – 80 to 3000 ton

Advantages
Low cost per part
Repeatable
Large selection of materials
Good surface finish

Drawbacks
Requires investment in tooling
Longer lead time to first parts

Surface Finishes
Textured in tool
Coloured in tool
Painted or Plated
Silk/pad printed

Materials
Too many to list. Talk
to HLH to find out
material options for
your project.

Tips and Tricks
Remove undercuts if possible
Specify a lower grade surface finish
Mold in standard plastics – pp, abs etc
Reduce weight of part
