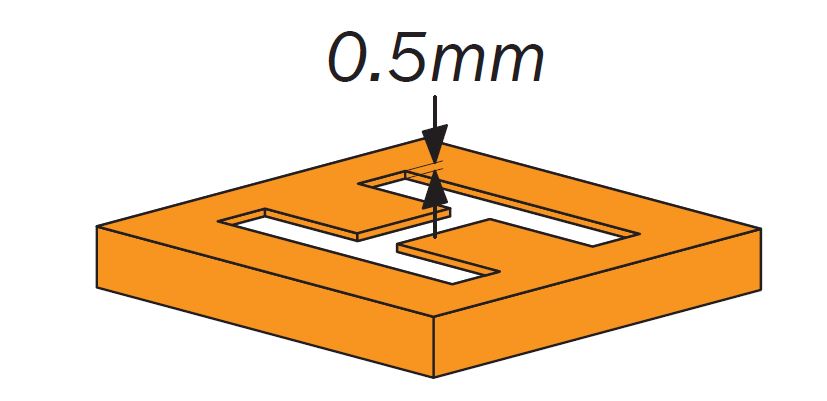

Text & Engraved Details – are at risk of closing up if not designed with 0.5mm > minimum height.

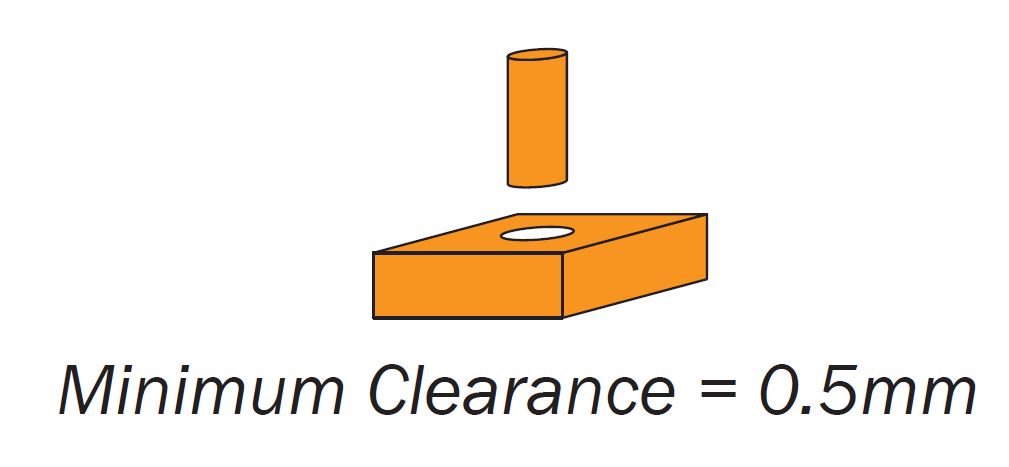

Mating Parts – minimum 0.5mm gap between axel and bore or other moving parts.
Pins & Embossed Features – Pins ≥ 0.8mm but even then risk breaking. Embossed features ≥ 0.3mm.
Follow these design tips and other design tips coming up to achieve a part design that is well suited for 3D printing manufacturing. Below is some further 3D printing guidance which may help you design a highly successful part for 3D printing manufacturing.
HLH Build Volume: 800x800x390mm
Tolerances – layer thickness is 0.1 – 0.2mm. SLA is very accurate in the x and y directions, meaning models are very accurate to CAD. General tolerance is +/- 0.1mm.
Advantages
Accurate to CAD
Fast build times
No tooling costs
Complex geometries possible
Good surface finish
Drawbacks
Brittle materials
Need support material
Materials
ABS like materials
High temperature
“tough†materials
Transparent materials
Surface Finishes
Polishing
Sand blasting
Painting
Plating & more
Tips & Tricks
Reduce weight to save costs
Add escape holes for resin in closed sections
Fillet walls and pins for extra strength
